PREMIUM QUALITY :

The replacement part is made from durable high-quality material and well-tested by the manufacturer - Meets OEM standards - Ensure long-lasting and effective performance.

The HH18HA416 is a normally closed switch that is designed to open at a specific temperature, usually around 200°F (93°C). When the furnace reaches this temperature, the switch will open, cutting off power to the furnace's heating elements or gas valve, which will prevent the furnace from overheating. The HH18HA416 limit switch is usually located near the furnace's heat exchanger.

Before replacing the limit switch, turn off the power supply to the furnace by switching off the circuit breaker or removing the fuse that powers the furnace. Use a screwdriver or pliers to remove the screws or clips that hold the old limit switch in place. Gently pull the switch out of the furnace and disconnect the wires. Place the new switch back into position and secure it in place with screws or clips. Turn the power back on to the furnace and test the new limit switch by running the furnace and monitoring the temperature.

Replaces part numbers :

95-314679, 95314679, HH18HA216, HH18HA215, HH18HA416, HH18HA416, 2347659, 95-314679, 95314679, HH18HA216, HH18HA215, 00662441983443,95-314679, 95314679, HH18HA216, HH18HA215, HH18HA416, 316418401, 318198932, AP4556791 and PS2581859

Contact Type

‎Normally Closed

Connector Type

‎Screws

Item dimensions L x W x H

‎5 x 5 x 0.75 inches

Mounting Type

‎Wall Mount

International Protection Rating

‎IP00

Upper Temperature Rating

‎2E+2 Degrees Fahrenheit

Control Method

‎Touch

Connectivity Protocol

‎Wi-Fi

Unit Count

‎1.0 Count

Number of Items

‎1

Manufacturer

‎T&M TRADERS

UPC

‎794849993394

Part Number

‎HH18HA416

Item Weight

‎0.634 ounces

Product Dimensions

‎5 x 5 x 0.75 inches

Item model number

‎HH18HA416

Item Package Quantity

‎1

Batteries Included?

‎No

Batteries Required?

‎No

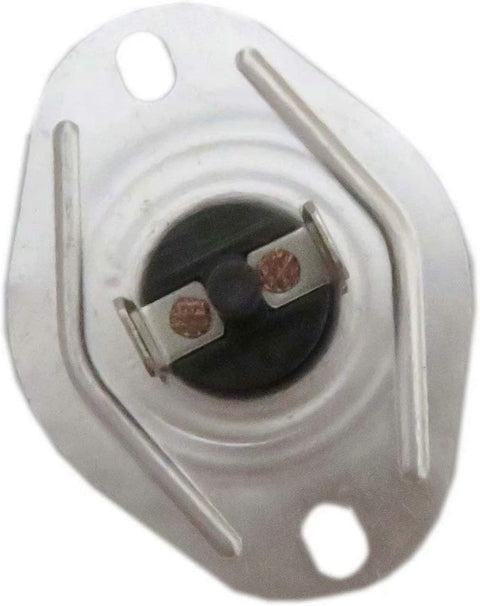

HH18HA416 Furnace Thermostat Limit Switch for Carrier Bryant Payne
